About this item

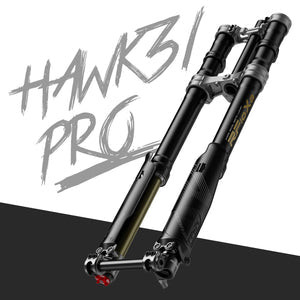

① High-Performance Design -- The Hawk31 PRO front fork features an impressive travel range of 203-228mm (if need up to another length, need contact us to customize) and is designed for top-tier performance in downhill and off-road biking. With a stanchion diameter of 37mm and a caliper mount spacing of 74mm, it’s compatible with 203mm disc brakes (with options for upgrades), making it ideal for electric dirt bikes and downhill bikes.

② Advanced Suspension Technology -- This fork employs an inverted oil-spring damping system with asymmetrical left and right legs for a unique, independent structure. It includes multi-stage adjustments for high-speed compression damping, low-speed compression damping, rebound damping, and spring preload, allowing for precise tuning to match your riding style and terrain.

③ Robust Build Quality -- Constructed with AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, the Hawk31 PRO is built for durability and strength. The use of 55CRSI spring wire ensures resilience and performance under stress.

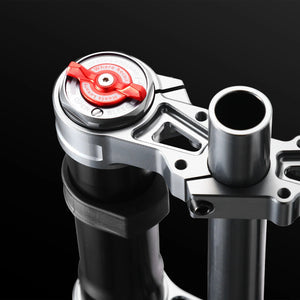

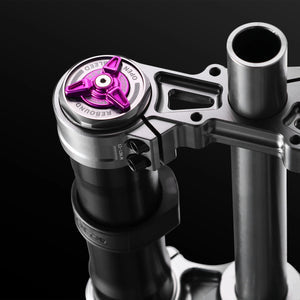

④ Customizable Adjustments -- All adjustment functions, including compression, rebound, and preload settings, are controlled by easy-to-use manual knobs. This allows for quick and convenient tuning in various riding conditions, ensuring optimal performance and comfort.

⑤ Enhanced Bottom-Out Support -- The fork features a unique oil pressure bottom-out design that provides strong support at the end of the travel, enhancing stability and reducing the impact of hard hits.

⑥ Reliable Damping Performance -- The internal damping system includes dual compression valve plates, ensuring stable and reliable compression damping. The fork uses high-quality, low-friction, low-freezing-point shock absorber oil to maintain consistent damping performance, even in extreme conditions.

FEATURES:

• Center Distance: 750-800mm
• Main Piston Travel: 203-228mm
• Tube Diameter: ∅37mm
• Caliper Mount Spacing: 74mm
• Disc Brake Size: ∅203mm (Upgradeable)
• Suitable For: Electric Dirt Bikes
• Damping System: Inverted Oil-Spring
• Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
• Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
• Spring Wire: 55CRSI

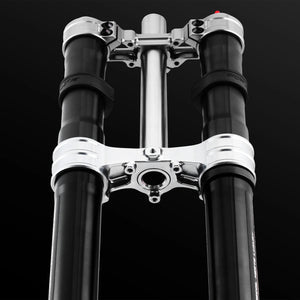

• Triple Clamp: CNC Precision Machined

Fitment:

• Talaria MX3 / MX4 / XXX
• SurRon LBX, LBS, L1E
• Segway X-260 / X-160
• E-Ride Pro S / SS 1.0/2.0
• Rawrr Mantis
• 79 Bike Falcon M
• Ventus One
• RFN Apollo
• Rerode R1
